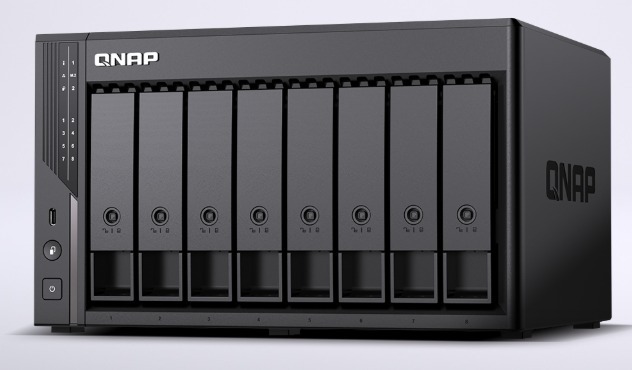

QNAP 8-bay 2.5GbE NAS 網絡儲存裝置 QU805 N150 - 16GB

產品描述

QNAP Qu805-N150-16G 配備 Intel® N150 四核心處理器與 16GB DDR5 記憶體，支援 8 個 3.5 吋硬碟槽及雙 M.2 NVMe SSD 插槽，適合需要高容量儲存與快取加速的辦公環境。機身亦提供 2.5GbE 網絡、USB 3.2 Gen 2 連接埠及 HDMI 2.1 輸出，方便日常備份、檔案分享及多媒體應用。 • 產品型號：Qu805-N150-16G • CPU：Intel® N150 4 核心處理器，最高 3.6GHz • CPU 架構：64 位元 x86 • 圖形處理器：Intel® Graphics • 浮點運算設備：加密引擎 (AES-NI) 硬體加速轉檔 • 系統記憶體：16GB SODIMM DDR5 • 最大記憶體：16GB SODIMM DDR5（1 x 16GB） • 記憶體插槽：1 x SODIMM DDR5 • 快閃記憶體：8GB eMMC NAND 快閃記憶體 • 磁碟插槽：8 x 3.5 吋 SATA 6Gb/s, 3Gb/s • 磁碟相容性：3.5 吋硬碟槽: 3.5 吋 SATA 硬碟 / 2.5 吋 SATA 固態硬碟 • 熱插拔支援：支援 • M.2 插槽：2 插槽 • M.2 插槽 1：M.2 2280 NVMe PCIe Gen 3 x1 • M.2 插槽 2：M.2 2280 NVMe PCIe Gen 3 x1 • 相容性：相容 PCIe Gen 3 以上的 NVMe SSD，請查詢相容性清單 https://www.qnap.com/compatibility/ • SSD 快取加速：支援 • 2.5 Gigabit 乙太網路埠：2（2.5G/1G/100M/10M） • 網路喚醒 (WOL)：支援 • Jumbo Frame：支援 • USB 3.2 Gen 2 (10Gbps) 連線埠：2 x Type-A USB 3.2 Gen 2；1 x Type-C USB 3.2 Gen 2 • HDMI™ 輸出：1，HDMI™ 2.1（最高支援 4096 x 2160 @ 60Hz） • 外型規格：直立式 • LED 指示燈：系統狀態、LAN、USB、HDD1~8、M.2 1~2 • 按鈕：電源、USB 複製、系統重置 • 尺寸（高 x 寬 x 深）：165 × 285 × 217 mm • 重量（淨重）：3.1 kg • 重量（總重）：5.7 kg • 操作溫度：0 - 40°C (32°F - 104°F) • 儲存溫度：-20 - 70°C (-4°F - 158°F) • 相對濕度：5~95% RH 無冷凝，濕球溫度：27℃ (80.6°F) • 電源供應設備：150W 變壓器 • 耗電量：運作模式，一般102.78 W（已使用 ST8000NM000A 完全安裝進行測試） • 系統警示蜂鳴器：支援 • Kensington 安全性插槽：支援 • 同時連線 (CIFS) 數目上限 - 最大記憶體：1500 ——— QNAP Qu805-N150-16G is equipped with an Intel® N150 quad-core processor and 16GB DDR5 memory, with support for 8 drive bays and dual M.2 NVMe SSD slots, making it suitable for office environments that need high-capacity storage and cache acceleration. It also provides 2.5GbE networking, USB 3.2 Gen 2 ports, and HDMI 2.1 output for everyday backup, file sharing, and multimedia applications. • Model Number: Qu805-N150-16G • CPU: Intel® N150 4-core processor, up to 3.6GHz • CPU Architecture: 64-bit x86 • Graphics Processor: Intel® Graphics • Floating Point Unit: Encryption engine (AES-NI) hardware-accelerated transcoding • System Memory: 16GB SODIMM DDR5 • Maximum Memory: 16GB SODIMM DDR5 (1 x 16GB) • Memory Slot: 1 x SODIMM DDR5 • Flash Memory: 8GB eMMC NAND flash memory • Drive Bays: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s • Drive Compatibility: 3.5-inch drive bays: 3.5-inch SATA hard drives / 2.5-inch SATA solid-state drives • Hot-Swappable Support: Supported • M.2 Slots: 2 slots • M.2 Slot 1: M.2 2280 NVMe PCIe Gen 3 x1 • M.2 Slot 2: M.2 2280 NVMe PCIe Gen 3 x1 • Compatibility: Compatible with NVMe SSDs of PCIe Gen 3 or above; please check the compatibility list https://www.qnap.com/compatibility/ • SSD Cache Acceleration: Supported • 2.5 Gigabit Ethernet Ports: 2 (2.5G/1G/100M/10M) • Wake on LAN (WOL): Supported • Jumbo Frame: Supported • USB 3.2 Gen 2 (10Gbps) Ports: 2 x Type-A USB 3.2 Gen 2; 1 x Type-C USB 3.2 Gen 2 • HDMI™ Output: 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) • Form Factor: Vertical • LED Indicators: System status, LAN, USB, HDD1~8, M.2 1~2 • Buttons: Power, USB Copy, System Reset • Dimensions (H x W x D): 165 × 285 × 217 mm • Net Weight: 3.1 kg • Gross Weight: 5.7 kg • Operating Temperature: 0 - 40°C (32°F - 104°F) • Storage Temperature: -20 - 70°C (-4°F - 158°F) • Relative Humidity: 5~95% RH, non-condensing, wet bulb temperature: 27°C (80.6°F) • Power Supply: 150W adapter • Power Consumption: Operating mode, typical 102.78 W (tested with ST8000NM000A fully installed) • System Alert Buzzer: Supported • Kensington Security Slot: Supported • Maximum Concurrent Connections (CIFS) - Maximum Memory: 1500
